For fast, tough, and accurate air conditioning diagnostics, pick gear built for the job. The Orion 5ft gauge set, BACOENG or Lichamp manifold kits, SINOCMP recharge kit, VIVOHOME vacuum pump kit, and Refrigerant Charging quick reference cards cover the basics.
Expect clear color dials, durable multi-layer hoses, brass fittings, calibration screws, ACME and flare adapters, plus vacuum and leak tools that work with R134a, R410A, and common blends. Use these together to speed diagnostics and protect systems, then continue learning specific setup tips.
| Orion Motor Tech 5FT HVAC AC Gauge Set |
| DIY-Friendly | Compatibility / Refrigerants: R134a, R12, R22, R502 | Gauge / Pressure Measurement: High & low pressure gauges (2.6″ hybrid anti-shock gauges; calibration screws) | Hoses (color-coded): Three color-coded hoses (blue low, red high, yellow service) — 5 ft | VIEW LATEST PRICE | Read Our Analysis |
| BACOENG AC Manifold Gauge Set with Hoses (R134A/R410A) |
| Professional Grade | Compatibility / Refrigerants: R134A, R410A, R22 | Gauge / Pressure Measurement: Dual gauges (low 0–550 PSI; high 0–750 PSI) | Hoses (color-coded): Four color-coded 5 ft hoses (red, blue, yellow, black) | VIEW LATEST PRICE | Read Our Analysis |
| Lichamp HVAC Manifold Gauge Set with Hose Kit |
| Heavy-Duty Performer | Compatibility / Refrigerants: R134a, R22, R32, R410A | Gauge / Pressure Measurement: Dual gauges (blue 550 PSI; red 800 PSI) with sight glass | Hoses (color-coded): Four color-coded 5 ft hoses | VIEW LATEST PRICE | Read Our Analysis |
| SINOCMP HVAC Manifold Gauge Refrigerant Recharge Kit |
| Precision Diagnostic | Compatibility / Refrigerants: R134a, R410a, R22, R12 | Gauge / Pressure Measurement: Dual gauges (LP 0–500 PSI; HP 0–800 PSI; calibration screws) | Hoses (color-coded): Three color-coded 4 ft hoses (blue, red, yellow) | VIEW LATEST PRICE | Read Our Analysis |
| HVAC Refrigerant Charging & Troubleshooting Quick Reference Cards |
| Field Reference | Compatibility / Refrigerants: (Reference cards) P/T charts and data for common refrigerants (includes R134a/R410A/R22 references) | Gauge / Pressure Measurement: Pressure/temperature (P/T) charts and quick-reference measurement guidance | Hoses (color-coded): N/A (reference cards) — includes diagrams showing standard color-coding for hoses/gauges | VIEW LATEST PRICE | Read Our Analysis |
| VIVOHOME HVAC Vacuum Pump & R134a Manifold Gauge Kit |
| Complete Kit | Compatibility / Refrigerants: R134a (also supports R12, R22, R502); includes R410a adapters | Gauge / Pressure Measurement: Manifold gauges with precise readings and shock-resistant cores | Hoses (color-coded): Three reinforced 5 ft color-coded hoses (red, blue, yellow) | VIEW LATEST PRICE | Read Our Analysis |
More Details on Our Top Picks
Orion Motor Tech 5FT HVAC AC Gauge Set
At the time you want a solid, affordable gauge set that handles most vehicle refrigerants and holds up to regular use, the Orion Motor Tech 5FT HVAC AC Gauge Set is a great pick for DIYers and pros alike. You’ll get a three-way manifold, three color-coded hoses, and quick couplers that make hookups fast and neat. The brass fittings and four-layer PVC hoses feel sturdy, and the hybrid anti-shock gauges have oil-filled cores plus calibration screws for tight accuracy. A moisture indicator helps you read coolant condition on the spot. You can trust the 5 ft reach and high pressure limits for routine shop work.
- Compatibility / Refrigerants:R134a, R12, R22, R502
- Gauge / Pressure Measurement:High & low pressure gauges (2.6″ hybrid anti-shock gauges; calibration screws)
- Hoses (color-coded):Three color-coded hoses (blue low, red high, yellow service) — 5 ft
- Construction Materials:Solid brass fittings, ABS, rubber, PVC hoses
- Included Adapters / Tools:Two 1/4 quick couplers; 1/4 to 1/2 29° trap adapter
- Intended Users / Use Cases:DIY & professional automotive HVAC maintenance (evacuate/refill, measure pressure)
- Additional Feature:Moisture indicator included
- Additional Feature:Hybrid oil-filled gauges
- Additional Feature:5 ft hose length
BACOENG AC Manifold Gauge Set with Hoses (R134A/R410A)
Should you work on car or home HVAC systems and want gear that feels built for a pro, this BACOENG AC manifold gauge set will make your job easier and more reliable. You’ll get a four way professional manifold that handles R134A, R410A and R22 so you can charge, diagnose, recover and evacuate with one kit. The blue low gauge reads 0 to 550 PSI and the red high reads 0 to 750 PSI, both clear in Fahrenheit. Four extra long color coded hoses, adjustable couplers, can tap, ACME adapters and a valve core wrench fit many setups. It’s solid brass, aluminum and PVC, drops resistant, and comes in a molded case with a clear manual so you can work confidently.
- Compatibility / Refrigerants:R134A, R410A, R22
- Gauge / Pressure Measurement:Dual gauges (low 0–550 PSI; high 0–750 PSI)
- Hoses (color-coded):Four color-coded 5 ft hoses (red, blue, yellow, black)
- Construction Materials:Solid brass, aluminum, PVC, plastic
- Included Adapters / Tools:ACME & tank adapters (1/4↔1/2, 5/16↔1/4, 1/4↔5/16); adjustable couplers; can tap; valve core wrench
- Intended Users / Use Cases:Professional mechanics — charging, diagnostics, recovery, evacuation
- Additional Feature:Four 5 ft hoses
- Additional Feature:Custom molded case
- Additional Feature:Includes valve core wrench
Lichamp HVAC Manifold Gauge Set with Hose Kit
Should you work on cars or home HVAC systems and want a single tool that handles charging, evacuation, diagnostics, and recovery, this Lichamp manifold gauge set is made for you. You get multifunctional capabilities for R134a, R22, R32, and R410A, so you’ll switch tasks without swapping kits. The extra-large colored dials show Fahrenheit and clear ranges to 800 psi red and 550 psi blue, while a sight glass lets you watch refrigerant flow. Four thickened 5 foot hoses resist pressure to 800 psi and burst at 4000 psi. Brass and aluminum parts, adapters, valves, gloves, and screwdriver round out a compact, reliable setup.
- Compatibility / Refrigerants:R134a, R22, R32, R410A
- Gauge / Pressure Measurement:Dual gauges (blue 550 PSI; red 800 PSI) with sight glass
- Hoses (color-coded):Four color-coded 5 ft hoses
- Construction Materials:Brass and aluminum metal parts, reinforced hose body
- Included Adapters / Tools:R134a adapters (2), R410A valves/adapters, tank adapters, can tap, valve core remover
- Intended Users / Use Cases:Home garage or mechanic shop — charging, evacuation, diagnostics, recovery
- Additional Feature:Sight glass for flow
- Additional Feature:Gloves included
- Additional Feature:Calibration screwdriver included

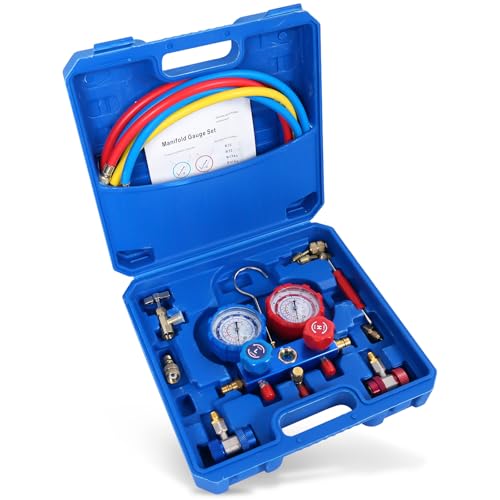

SINOCMP HVAC Manifold Gauge Refrigerant Recharge Kit
Should you service cars or home HVAC systems and want a reliable, professional tool, the SINOCMP HVAC manifold gauge set is built to make your job easier and more precise. You’ll connect solid brass gauges and color coded 4 ft hoses to measure pressures, evacuate systems, and refill refrigerant like R134a or R410a. The dual meters give clear spring pointer readings with 1.5 psi error and calibration screws for fine tuning. Accessories include quick couplers, angled adapters, can tap, valve core wrench, hook, manual, and a blue case. You’ll appreciate sturdy hoses rated to 600 PSI and burst tested for safety.
- Compatibility / Refrigerants:R134a, R410a, R22, R12
- Gauge / Pressure Measurement:Dual gauges (LP 0–500 PSI; HP 0–800 PSI; calibration screws)
- Hoses (color-coded):Three color-coded 4 ft hoses (blue, red, yellow)
- Construction Materials:Solid brass, ABS, rubber
- Included Adapters / Tools:2 × R134a quick couplers; multiple R410a adapters; 29° adapter; can tap; valve core wrench; hook
- Intended Users / Use Cases:Professional HVAC maintenance and automotive A/C diagnostics/charging
- Additional Feature:Blue plastic storage case
- Additional Feature:Hook included for hanging
- Additional Feature:Zero-adjustment screws
HVAC Refrigerant Charging & Troubleshooting Quick Reference Cards
In case you’re a field technician who needs fast, reliable answers on the fly, these HVAC refrigerant charging and troubleshooting quick reference cards are the tool that’ll make your workday smoother and less stressful. You’ll carry four double-sided ABS plastic cards that resist weather, UV, damp basements, hot rooftops, and humid crawl spaces. They show P/T charts, refrigerant weights, superheat calculations, maintenance checklists, a Frozen Evaporator Quick Guide, and troubleshooting diagrams. At 9″ x 6″ they fit tool bags or pockets, clip to your belt, and hang on a storage ring. They’ve been field-tested and trusted against pros.
- Compatibility / Refrigerants:(Reference cards) P/T charts and data for common refrigerants (includes R134a/R410A/R22 references)
- Gauge / Pressure Measurement:Pressure/temperature (P/T) charts and quick-reference measurement guidance
- Hoses (color-coded):N/A (reference cards) — includes diagrams showing standard color-coding for hoses/gauges
- Construction Materials:Durable ABS plastic (cards)
- Included Adapters / Tools:Quick-reference cards (no hardware) — includes charts, checklists and calculation aids (tool-like accessory)
- Intended Users / Use Cases:HVAC technicians and trainees — field reference for charging/troubleshooting
- Additional Feature:Weather/UV resistant
- Additional Feature:Binding holes for clip
- Additional Feature:Field-tested accuracy
VIVOHOME HVAC Vacuum Pump & R134a Manifold Gauge Kit
Should you work on cars or home air conditioners and want a reliable, all-in-one service kit, the VIVOHOME HVAC vacuum pump and R134a manifold gauge set is built for hands-on DIYers and small pro techs who need fast, accurate evacuation and charging. You’ll like the 1/3 HP, 4 CFM pump that pulls deep vacs and removes moisture before charging. It feels solid with a die-cast body, anti-slip base, and ergonomic handle. The manifold gives clear, precise readings and shock resistance. Hoses, adapters, can taps, leak detector, oil and bag are included, so you can move between cars and home systems with confidence.
- Compatibility / Refrigerants:R134a (also supports R12, R22, R502); includes R410a adapters
- Gauge / Pressure Measurement:Manifold gauges with precise readings and shock-resistant cores
- Hoses (color-coded):Three reinforced 5 ft color-coded hoses (red, blue, yellow)
- Construction Materials:Die-cast aluminum pump body; brass fittings; reinforced hoses
- Included Adapters / Tools:R410a adapters, R134a can taps, quick couplers; leak detector; carry bag
- Intended Users / Use Cases:DIY and professional use — automotive A/C, residential HVAC, heat pumps, small split/window units
- Additional Feature:4 CFM single-stage pump
- Additional Feature:Clear pump oil sight-glass
- Additional Feature:Bottom oil drain port
Factors to Consider When Choosing Air Conditioning Diagnostic Equipment
Once you pick diagnostic gear, consider initially about refrigerant compatibility so your gauges and hoses match the systems you service. Also check gauge accuracy and calibration, plus the pressure range and valve types, because those determine safe, reliable readings. Finally, look at hose length and durability to make your work easier and avoid frustrating leaks or breaks.
Compatibility With Refrigerants
Because the wrong tool can damage a system or put you at risk, you should pick diagnostic equipment that matches the refrigerants you work with and the changes those systems have gone through. Check the refrigerant types the tool supports, like R134a, R410A, R22, R12, R32 and R502, and include blends or retrofits you could encounter. Also verify that gauges, hoses, couplers and adapters are sized and rated for the service connections and pressure and temperature ranges to avoid leaks and unsafe operation. Make sure seals, O-rings and hose materials tolerate the refrigerant and lubricant types, since some oils attack certain elastomers. For refrigerants with special fittings, choose tools with dedicated adapters or separate service ports to stay safe and compliant.
Gauge Accuracy And Calibration
Pick gauges that give you confidence every time you hook up to a system, because accurate pressure readings are the foundation of correct diagnosis and safe service. You should choose gauges with a specified accuracy, typically ±1.5 to ±1.6 percent or ±1.5 to 2 psi, and a calibration screw so you can zero and fine tune before each use. Prefer oil filled cores for steady needles on vibration, while dry dials are lighter but flutter more. Make sure pressure ranges cover your jobs, for example low side to 550 psi and high side to 750 to 800 psi, so readings sit in the ideal zone. Check calibration intervals and local service or parts availability. Large clear dials and P/T charts help you reduce conversion errors.
Hose Length And Durability
Gauges tell you what’s happening inside a system, and hoses get those readings to you safely, so it pays to give hose length and durability the same careful thought.
You’ll want longer hoses, five feet or more, so you can work away from hot or moving parts and reach awkward service ports. Check working and burst pressure ratings; pick hoses rated at least 600 to 800 PSI working and burst ratings in the thousands for safety. Look for multi layer reinforced construction like PVC or rubber with braids to resist kinks, abrasion, oil, and flex fatigue. Inspect fittings for solid metal construction and quality crimps or swaged ends to prevent leaks or separation. Consider thicker walls, anti kink or 45 degree bend ends, and chemical and UV resistance for longer field life.
Pressure Range And Limits
As you’re choosing diagnostic equipment, look initially at the pressure ranges and limits so you don’t get caught off guard on the job. You’ll want gauges and hoses that cover expected system pressures plus a safety margin. Many low sides reach about 550 psi and highs near 800 psi for common refrigerants, so check those numbers. Also verify working pressure ratings for hoses and fittings, often 600 to 800 psi, so parts won’t wear out during charging and recovery. Look at burst pressure ratings too, since many hoses tolerate thousands of psi and that prevents sudden failure. Pay attention to gauge resolution and calibration so you can read small differentials and high pressures accurately. Finally, match tools to refrigerant P/T behavior so readings make sense.
Valve And Fitting Types
Consider the fittings and valves as the hands that let you work safely and quickly on a system; they need to match the job and feel reliable in your grip. You want quick couplers 1/4″ SAE that click on and off without tools and use color codes so you never mix high and low sides. Threaded tank adapters like ACME or 5/16″ and 1/4″ must match cylinder threads and refrigerant type, so you avoid costly mistakes. Use valve core depressors or integrated service port depressors to charge or evacuate without pulling cores, cutting leaks and contamination. Match flare adapters 29° or 45° with correct thread sizes to keep metal to metal seals tight. Choose shutoff and manifold valves rated for 600 to 800 PSI or higher to control flow safely.
Portability And Storage Options
You’ll want gear that’s easy to grab and go, because lugging heavy, loose tools between jobs wastes time and wears you out. Pick compact, lightweight kits with integrated handles or molded cases so you can move quickly and protect fragile parts. Choose organized cases with custom-molded storage or labeled compartments to keep gauges, hoses, and fittings tidy and speed setup. Look for rugged, shock-resistant housings, oil-filled gauge cores, or protective boots to survive drops and vibration. Prefer hoses and cables about 4 to 5 ft long that coil neatly, reach components without stretching, and avoid trip risks. Consider hose reels, storage rings, mounting hooks, and overall kit mass so items fit your vehicle and reduce fatigue on long days.
Included Accessories And Tools
Grab a kit that gives you everything you need so you won’t stop mid-job to hunt for parts. You want hoses sized around 4 to 5 ft with clear color coding for high, low, and service lines so you won’t mix connections. Look for quick couplers and multiple adapters like 1/4 in, 5/16 in, 1/2 in, and ACME plus can taps to fit various valves and cylinders. Include vacuum and charging items such as a service hose to the vacuum pump, valve core wrench, and can tap so you can evacuate and charge without extra trips. Add sight glasses, moisture indicators, calibration screwdrivers, and extra O-rings for on-the-spot checks. Choose a molded case or bag and keep P/T charts or quick reference cards handy.
Safety Features And Indicators
You picked a kit with the right hoses and adapters, and now you want gear that keeps you and the system safe while you work. Pick gauges and hoses rated above expected pressures, for example working pressures of 600 to 800 PSI and burst pressures in the thousands, so they won’t rupture during charging or leak tests. Choose manifolds and couplers with positive shutoff valves and secure quick connect fittings to stop accidental refrigerant release and isolate ports safely. Prefer shock resistant, oil filled or hybrid core gauges and multilayer hoses to keep readings accurate and resist drops or kinks. Look for clear visual indicators like sight glasses, moisture indicators, color coded dials and zero adjustment screws. Use integrated safety accessories and follow rated limits and PPE guidance.
