Choose a curing system that fits the job: handheld 1 kW units for spot repairs and vinyl baking, dual 2 kW lamps for even small-panel cures, or multihead 3.9 kW arrays for full panels and faster throughput.
Look for stainless or aluminum construction, timers, adjustable wattage, locked casters, and overload safety.
Keep distance, ramp rate, and coverage in mind for consistent finishes.
This quick guide helps pick reliable, fast curing gear that saves time and reduces rework.
| VEVOR 2000W Short-Wave Infrared Paint Curing Lamp |
| Professional Workhorse | Power: 2000 W | Heating Type: Short-wave infrared (far/short-wave infrared) | Voltage / Electrical: 110–120 V (input voltage) | VIEW LATEST PRICE | Read Our Analysis |
| Solary 2100W Short-Wave Infrared Paint Curing Lamp |
| Smart Timer Control | Power: 2100 W | Heating Type: Short-wave infrared | Voltage / Electrical: 110 V | VIEW LATEST PRICE | Read Our Analysis |
| DATOUBOSS 1000W Handheld Shortwave Infrared Paint Curing Lamp |
| Portable Spot-Repair | Power: 1000 W | Heating Type: Short-wave infrared | Voltage / Electrical: 110 V | VIEW LATEST PRICE | Read Our Analysis |
| DYRABREST 2000W Infrared Paint Curing Lamp (2-Pack) |
| Dual-Unit Efficiency | Power: 2000 W (2×1000 W per unit) | Heating Type: Far-infrared (shortwave penetration noted) | Voltage / Electrical: 110 V, 50 Hz | VIEW LATEST PRICE | Read Our Analysis |
| Infrared 3900W 3-Head Paint Baking Lamp System |
| Heavy-Duty Coverage | Power: 1300 / 2600 / 3900 W (adjustable; up to 3900 W) | Heating Type: Short-wave infrared (halogen short-wave) | Voltage / Electrical: 110 V, 50/60 Hz | VIEW LATEST PRICE | Read Our Analysis |
| 8Pc 2000W Short-Wave Infrared Paint Curing Lamps |
| Multi-Lamp Kit | Power: 2000 W (dual 1000 W tubes per lamp) | Heating Type: Short-wave infrared | Voltage / Electrical: (implied US-standard electrical; dual 1000 W tubes) — compatible with 110 V systems | VIEW LATEST PRICE | Read Our Analysis |
More Details on Our Top Picks

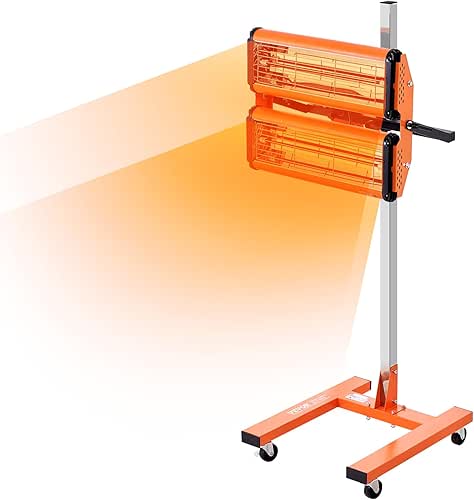

VEVOR 2000W Short-Wave Infrared Paint Curing Lamp
Should you work on cars or do frequent spot repairs and want faster, cleaner paint curing, the VEVOR 2000W short-wave infrared lamp is a smart choice for you. You’ll notice curing times drop at 60 to 80 percent, and you’ll control temperatures from 104 to 167 °F to match coatings. The lamp’s aluminum frame and stainless reflector feel solid, and the rotating housing plus adjustable height help you reach odd angles. You can move it easily on ball-bearing wheels and lock it down. Safety overload protection keeps you calm, and infrared drying avoids hot air and extra fumes, so you’ll work cleaner.
- Power:2000 W
- Heating Type:Short-wave infrared (far/short-wave infrared)
- Voltage / Electrical:110–120 V (input voltage)
- Mobility / Adjustability:Height-adjustable stand (0.1–1.7 m), rotating lamp housing, caster wheels with brake
- Typical Applications:Auto spray paint rooms, local/spot paint drying, putty/filler/primer drying, engine drying, preheating
- Construction Material / Build:Aluminum alloy frame; 304 stainless lamp reflector
- Additional Feature:Automatic overload protection
- Additional Feature:Ball-bearing caster wheels
- Additional Feature:Rotating lamp housing

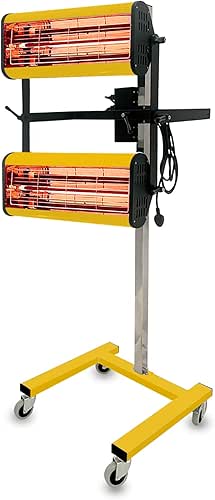

Solary 2100W Short-Wave Infrared Paint Curing Lamp
In case you want fast, reliable spot repairs that look factory fresh, the Solary 2100W short-wave infrared lamp is made for technicians who need speed and precision. You’ll like the sturdy 304 stainless steel shade that resists oxidation and gathers energy, and the die-cast aluminum radiator that sheds heat so the lamp stays steady. Its 2100W shortwave infrared light penetrates coatings for rapid drying, enhancing gloss and adhesion. You control bake time from 1 to 30 minutes with an intelligent timer. The unit moves easily on pulleys, adjusts height, and rotates into tight spots for putty, paint, or engine drying.
- Power:2100 W
- Heating Type:Short-wave infrared
- Voltage / Electrical:110 V
- Mobility / Adjustability:Pulley/wheels for movement, height-adjustable bracket, rotatable lamp head
- Typical Applications:Local paint drying, putty drying, sheet metal painting, on-site repairs, engine drying
- Construction Material / Build:304 stainless steel lamp shade; die-cast aluminum radiator
- Additional Feature:Intelligent adjustable timer
- Additional Feature:Die-cast aluminum radiator
- Additional Feature:Oxidation-resistant shade

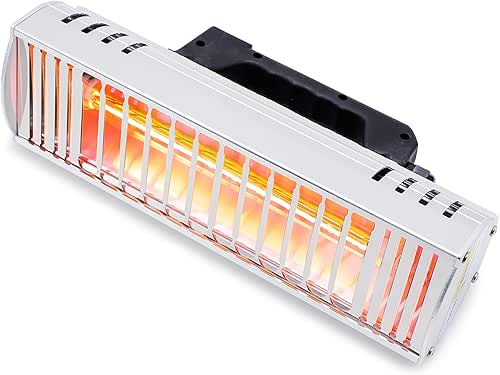

DATOUBOSS 1000W Handheld Shortwave Infrared Paint Curing Lamp
Should you work on cars and need a fast, reliable way to cure paint and spot repairs, the DATOUBOSS 1000W handheld shortwave infrared lamp is made for you. You’ll value its 1000 W shortwave infrared power and 110 V input that dries coatings from the inside out. The 300 × 150 mm coverage reaches small panels and tight spots, and 60–80 °C working temps improve gloss and adhesion while cutting wrinkles and rework. Its aluminum alloy body and ventilated back give solid heat dissipation and long life. Use it for spot repairs, primer and filler drying, vinyl wrap baking, and engine work.
- Power:1000 W
- Heating Type:Short-wave infrared
- Voltage / Electrical:110 V
- Mobility / Adjustability:Handheld (portable) form factor (no stand)
- Typical Applications:Auto spray paint rooms, spot repairs, putty/filler/primer drying, engine drying, vinyl/carbon-fiber wrap baking
- Construction Material / Build:Aluminum alloy body and mesh; aluminum sheet back with ventilation holes
- Additional Feature:Handheld portable form
- Additional Feature:Perforated rear cooling
- Additional Feature:Aluminum front mesh

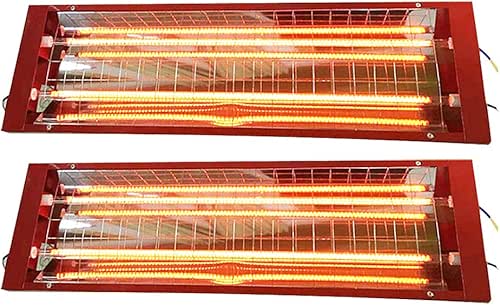

DYRABREST 2000W Infrared Paint Curing Lamp (2-Pack)
In case you work on car panels, furniture, or small industrial parts and want fast, reliable curing, this DYRABREST 2000W infrared lamp set is built for hands-on pros who need precise, clean heating. You get two 2000W units, each with twin 1000W carbon fiber tubes that use far infrared to hit inner paint layers and cut curing time. You’ll like the rotating lampshade and adjustable metal tube for aimed heat, and the caster with brake keeps things stable. It enhances gloss and adhesion while limiting secondary contamination, and it’s light, mobile, and easy to operate during busy repair work.
- Power:2000 W (2×1000 W per unit)
- Heating Type:Far-infrared (shortwave penetration noted)
- Voltage / Electrical:110 V, 50 Hz
- Mobility / Adjustability:Stable adjustable metal tube, rotating lampshade, ball casters with parking brake
- Typical Applications:Automotive spray booths, local paint drying, furniture paint booths, putty drying, foil application, metalworking
- Construction Material / Build:Lightweight portable construction; (carbon fiber heating tube) with adjustable metal tube
- Additional Feature:Carbon fiber heating tubes
- Additional Feature:Two-unit set
- Additional Feature:Lightweight portable design

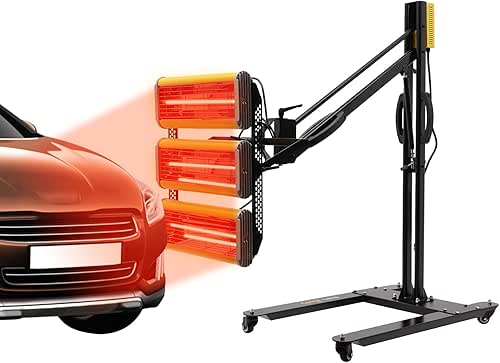

Infrared 3900W 3-Head Paint Baking Lamp System
You’ll find the Infrared 3900W 3-Head Paint Baking Lamp System ideal provided you need fast, reliable curing for auto body repairs or small shop projects where time and finish matter. You’ll appreciate aviation aluminum and cast iron build that feels solid and resists heat. Three halogen shortwave heads heat quickly and dry paint from the inside out, enhancing gloss and adhesion. You can set power to 1300, 2600, or 3900 W and use the 0–60 minute timer and 10–100 °C control for repeatable results. The stand rolls easily, adjusts to 2.1 m, and rotates for precise targeting.
- Power:1300 / 2600 / 3900 W (adjustable; up to 3900 W)
- Heating Type:Short-wave infrared (halogen short-wave)
- Voltage / Electrical:110 V, 50/60 Hz
- Mobility / Adjustability:Height adjustable 0–2.1 m, 360° lamp rotation, four wheels (two with brakes)
- Typical Applications:Paint curing, putty drying, film baking, partial paint drying, engine drying, sheet metal painting, auto body repair/detailing
- Construction Material / Build:Aviation aluminum and cast iron body; spray-painted finish
- Additional Feature:Independently switchable heads
- Additional Feature:Wide 1.4×1.4 m area
- Additional Feature:0–60 minute timer
8Pc 2000W Short-Wave Infrared Paint Curing Lamps
Should you want fast, reliable paint curing that saves time and power, the 8Pc 2000W Short-Wave Infrared Paint Curing Lamps are made for busy bodyshops and do-it-yourself repairers who need consistent results. You’ll like dual 1000W halogen tubes per lamp giving deep shortwave infrared penetration that dries paint from the inside out and enhances gloss. The set of eight covers wide areas, fits spray booths, local repairs, putty and furniture work, and handles adhesive removal. Built with reflective interiors, mesh fronts, and side vents, they cool well and last. Rounded edges protect hands and the smooth surface wipes clean.
- Power:2000 W (dual 1000 W tubes per lamp)
- Heating Type:Short-wave infrared
- Voltage / Electrical:(implied US-standard electrical; dual 1000 W tubes) — compatible with 110 V systems
- Mobility / Adjustability:Pre-drilled mounting holes, wheels/portable design implied, ventilation for mounting (mounting/placement adaptable)
- Typical Applications:Automotive spray booths, local paint repairs, body repair paint curing, putty drying, furniture finishing, adhesive removal
- Construction Material / Build:Premium materials with reflective interior; front mesh and ventilation holes (durable construction)
- Additional Feature:Pre-drilled mounting holes
- Additional Feature:Smooth rounded edges
- Additional Feature:High-reflective interior
Factors to Consider When Choosing Body Repair Paint Curing Systems
As you pick a paint curing system, consider initially about the heating technology and how it matches the coatings you use. Next consider power output, temperature control, and how wide the beam is so you get even coverage without overheating panels. Also check mobility and mounting options so the unit fits your workflow and makes jobs faster and less stressful.
Heating Technology Type
Pick the heating technology that matches the paint system and the job you do every day, because the wrong choice wastes time, energy, and finish quality. You want short-wave infrared whenever you need fast, deep curing that improves gloss and adhesion, since it heats coatings from the inside out. You want far-infrared whenever you prefer heating the object, not the air, to cut contamination and focus energy on the substrate. Consider lamp placement and working distance because beam penetration and thermal uniformity let solvents escape without surface defects. Also check controllable temperature range and rapid response so you can match polymer cure profiles around 40 to 100 °C. Finally, bear in mind wattage and head count affect effective area and bake time, so size the system to the work you handle.
Power And Output
Start matching power and output to the work you do every day so you won’t waste time or damage a finish. You’ll pick total wattage to fit job scale: small spot repairs often need 1 to 2 kW, while full panels or booth work require 2 to 4 kW or more. Consider radiation type because short wave gives deeper penetration and faster internal drying, while far infrared focuses surface heat and could be slower on thick coatings. Look for adjustable power or multi head control so you can stage output and protect thin substrates. Check effective heating area and recommended working distance to avoid under or overexposure. Finally, balance peak temperature and ramp rate to meet coating needs without harming parts.
Temperature Control Options
Because you need to control heat without guessing, temperature options on a curing system matter a lot. You want an adjustable range that matches your coatings, usually about 40 to 100 °C. Choose systems with precise controls like digital thermostats or stepless dials and timers from 0 to 60 minutes so you won’t risk overheating. Fast heat up matters too, since many short wave units reach 50 to 100 °C in about 30 seconds, cutting cure time while you keep even heat across the panel. Zoned or independently switchable lamp heads let you target spots without blasting the whole panel. Make sure the controller has overload protection, over temperature cutoffs, and automatic shutoff to protect both the work and the person using it.
Coverage And Beam Size
Whenever you’re matching a curing system to a job, consider about how much area the lamp actually covers and how that changes with distance, because the right beam size means faster, more even cures and less risk of soft spots or burns. Match beam size to the repair. Small spot work calls for a focused beam under about 0.3 × 0.15 m. Full panels need much larger coverage, often at least 1.4 × 1.4 m. Check the lamp’s recommended working distance since beam diameter and intensity change with range, and many short wave infrared units concentrate heat between roughly 60 and 80 cm. Decide whether one adjustable head or multiple heads will give uniform coverage, and confirm maximum usable baking area and any required overlap.
Mobility And Mounting
You’ve just picked the right beam size and working distance for a job, and now you need to contemplate how the lamp will move and sit while you work. You want adjustable height ranges, such as 0.1 to 2.1 m, and multi-axis head rotation so you can aim at tight curves and big panels. Choose units with casters or pulleys and at least two locking brakes for easy repositioning and solid placement during curing. Ponder the recommended working distance and effective drying area so one head covers the zone without constant moves. Favor modular or multi-head setups with independent lamp switching to save time and energy. Match mounting options to workflow: handheld for detail and floor-mounted multi-heads for even coverage.
Build Quality Materials
Consider about build quality like the backbone of your curing system, because the parts you pick determine how well the lamp lasts and how steady it keeps heat on the paint. You want corrosion resistant metals such as aluminum alloys and 304 stainless steel for frames and reflectors so they stay bright and strong. Die cast or aviation grade aluminum parts and cast iron supports cut deformation during repeat heating and cooling. Smooth, highly reflective finishes help spread heat evenly and stop hot spots that harm coatings. For moving parts, check durable bearings, solid welds, and strong fasteners so adjustments hold tight and wheels roll true. Also look for vent holes, mesh panels, and heat shedding shapes to avoid internal overheating and lengthen lamp life.
Safety And Protections
Because safety matters as much as curing speed, you’ll want a lamp system that protects both people and paint, and gives you steady, worry-free results. Look for automatic overload or thermal cutoff protection so the unit shuts down before it overheats while running high wattages. Check that lamps and reflectors have front mesh and side vents to keep surface temperatures lower and cut burn risk. Confirm electrical specs, proper grounding, and compatible plugs to avoid shocks or short circuits. Stable supports, locked casters, and secure mounts stop tipping and accidental contact while you move or adjust height. Use timers and adjustable temperature controls to prevent overexposure and lower solvent ignition risk. These measures keep your team safe and your repairs reliable.
Energy Efficiency Considerations
While picking a curing system, consider about how much heat actually goes into the paint versus how much energy the unit wastes, because better conversion means lower bills and faster turnarounds. You’ll want units with high electrical to radiant conversion like short wave infrared or halogen lamps, since they turn more input watts into usable heat for each square meter. Also pick adjustable power or multi stage output so you can match heat to repair size and avoid overheating small areas. Look for focused or multi head layouts and specified effective coverage to concentrate energy and cut bake time. Fast ramp up times, timers and temperature controls stop wasted run time. Reflective interiors, directional heads and proper insulation further enhance delivery and lower energy per job.
