You need evaporator switches that hold up under stress, and these five picks cover rugged capillary thermostats, compact bimetal snap switches, high‑temperature normally closed units, and a resettable safety option.
Each choice suits different mounting spots and electrical loads, so matching switch type to application keeps systems running smoothly.
I explain where to mount each switch, what electrical ratings matter, and why one style fits a use case over another.
Read on for straightforward, practical guidance to pick the right switch and move to installation confidently.
| Universal 12V/24V Thermostatic Rotary Switch with Capillary |
| Best for Vehicles | Action Type: Rotary thermostatic (OFF-NONE-ON) | Contact Behavior (N.O. / N.C.): Normally closed | Intended Application: Automotive A/C evaporators & 12V/24V appliances | VIEW LATEST PRICE | Read Our Analysis |
| KSD301 Bimetal Snap Thermostat Switch 40°C/30°C (2 pcs) |
| Safety-Focused Pick | Action Type: Snap-action (bimetallic snap disc, auto-reset) | Contact Behavior (N.O. / N.C.): Normally open (closes on temp rise) | Intended Application: Appliance/equipment overheat protection (refrigerators, heaters, fans, etc.) | VIEW LATEST PRICE | Read Our Analysis |
| uxcell KSD9700 40°C Normally Open Thermostat Switch |
| Compact Performance | Action Type: Snap-action (quick-action, bimetal) | Contact Behavior (N.O. / N.C.): Normally open (closes on temp rise) | Intended Application: Home appliances, motors, electrical equipment | VIEW LATEST PRICE | Read Our Analysis |
| KSD9700 NC 75°C Temperature Control Thermostat Switch (2Pc) |
| High-Temp Duty | Action Type: Snap-action (fast action, bimetal) | Contact Behavior (N.O. / N.C.): Normally closed (opens on temp rise) | Intended Application: Household electrical appliances (motors, washing machines, AC, etc.) | VIEW LATEST PRICE | Read Our Analysis |
| Resettable KSD301-290F Water Heater Thermal Switch |
| Reliable Auto-Reset | Action Type: Snap-action (disc-style, auto-reset) | Contact Behavior (N.O. / N.C.): Normally closed (opens on temp rise, auto-reset) | Intended Application: Water heaters (gas/electric residential heaters) | VIEW LATEST PRICE | Read Our Analysis |
More Details on Our Top Picks
Universal 12V/24V Thermostatic Rotary Switch with Capillary
Should you need a rugged, easy-to-install thermostat for a vehicle or small 12V or 24V appliance, this Universal Thermostatic Rotary Switch with Capillary is a strong choice because it pairs simple rotary control with a reliable liquid expansion sensor that doesn’t need complex setup. You’ll find it fits automotive evaporators and many small appliances, runs on AC 12V or 24V, and offers three rotary positions with normally closed copper contacts. It feels sturdy, seals to IP65, and lasts about 200,000 cycles. You’ll attach the 40 by 6 mm capillary, wire three terminals, and know it’s tested according to ISO9001 and CCC.
- Action Type:Rotary thermostatic (OFF-NONE-ON)
- Contact Behavior (N.O. / N.C.):Normally closed
- Intended Application:Automotive A/C evaporators & 12V/24V appliances
- Temperature Sensing Method:Liquid expansion capillary sensor (capillary tube)
- Mounting / Terminals:3 terminals (solder/crimp); rotary actuator
- Use in Safety/Protection Roles:Temperature control and protection for A/C and appliances
- Additional Feature:Capillary sensing rod included
- Additional Feature:Wide temperature range (50–300°C)
- Additional Feature:IP65 rated enclosure
KSD301 Bimetal Snap Thermostat Switch 40°C/30°C (2 pcs)
Provided you want a simple, reliable thermostat for protecting small appliances and cabinets, the KSD301 Bimetal Snap Thermostat switch is a strong choice because it gives precise on and off control at 40°C and 30°C and resets automatically. You’ll appreciate its compact Bakelite body and stainless steel flange that mount with a screw, so installation feels straightforward. It uses a US EMS bimetal disc for snap action, rated for common voltages and currents up to 16A and 2000 watts. You can replace many fixed thermostats in fans, heaters, refrigerators, and control cabinets with confidence using this two piece set.
- Action Type:Snap-action (bimetallic snap disc, auto-reset)
- Contact Behavior (N.O. / N.C.):Normally open (closes on temp rise)
- Intended Application:Appliance/equipment overheat protection (refrigerators, heaters, fans, etc.)
- Temperature Sensing Method:Bimetallic disc
- Mounting / Terminals:Screw fixation; two contacts (large capacity)
- Use in Safety/Protection Roles:Overheat protection and temperature shutoff for appliances/equipment
- Additional Feature:UL/CUL certified (E527363)
- Additional Feature:Screw-fix mounting ears
- Additional Feature:High current capacity (16A)
uxcell KSD9700 40°C Normally Open Thermostat Switch
In case you’re installing or repairing evaporator systems and need a tiny part that won’t let you down, the uxcell KSD9700 40°C Normally Open thermostat is a smart choice for technicians and DIYers who want reliable, repeatable temperature control. You’ll like that it comes as a pair and fits tight spaces while handling up to 250V and 5A. It stays open at rest and snaps closed once temperature rises past 40°C, giving quick, stable action without arcing. You can trust its sensitive contact sensor for motors, transformers, and home appliances. It feels durable, predictable, and easy to swap.
- Action Type:Snap-action (quick-action, bimetal)
- Contact Behavior (N.O. / N.C.):Normally open (closes on temp rise)
- Intended Application:Home appliances, motors, electrical equipment
- Temperature Sensing Method:Bimetallic disc
- Mounting / Terminals:Small snap housing; two terminal contacts (wire/solder typical)
- Use in Safety/Protection Roles:Temperature protection/control for appliances and motors
- Additional Feature:Compact small size
- Additional Feature:Quick-action snap disc
- Additional Feature:250V, 5A rating

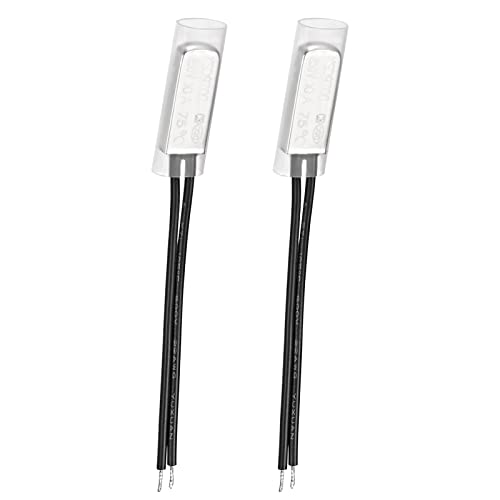

KSD9700 NC 75°C Temperature Control Thermostat Switch (2Pc)
Should you need a reliable temperature cutoff for small appliances and HVAC parts, the KSD9700 NC 75°C thermostat is a smart pick that puts safety and steady performance foremost. You’ll find two metal switches in the pack, each rated 250V 10A, so they handle large control currents without fuss. They act fast and accurately, opening contact as temperature rises and closing as it cools. You’ll like the compact, easy to install design, but don’t deform the switch during fitting. Use them for motors, washers, air conditioners, fans, and cookers. Confirm size before ordering and follow installation precautions.
- Action Type:Snap-action (fast action, bimetal)
- Contact Behavior (N.O. / N.C.):Normally closed (opens on temp rise)
- Intended Application:Household electrical appliances (motors, washing machines, AC, etc.)
- Temperature Sensing Method:Bimetallic (snap) element
- Mounting / Terminals:Compact housing; two terminal contacts (installation with screws)
- Use in Safety/Protection Roles:Temperature protection/control for household electrical equipment
- Additional Feature:Normally closed 75°C setpoint
- Additional Feature:250V, 10A rating
- Additional Feature:Do-not-deform installation note
Resettable KSD301-290F Water Heater Thermal Switch
In case you want a dependable, easy-to-install safety part for a water heater that resets itself after cooling, the KSD301-290F is a smart pick because it stops overheating at 290°F and restores power without a service call. You’ll like that it fits Bradford White models like MI-T6FBN and 50T65F and matches part numbers 239-43676-03 or 415-43676-03. It’s a disc-style, normally closed cutoff with two 1/4 inch spade terminals and dual mounting ears. Installers tell you to cut power and gas initially, reuse original screws, and verify the label. It includes only the switch.
- Action Type:Snap-action (disc-style, auto-reset)
- Contact Behavior (N.O. / N.C.):Normally closed (opens on temp rise, auto-reset)
- Intended Application:Water heaters (gas/electric residential heaters)
- Temperature Sensing Method:Bimetallic/disc thermal element
- Mounting / Terminals:Two 1/4″ quick-connect spade terminals; dual mounting ears
- Use in Safety/Protection Roles:Thermal limit / cutoff protection for water heaters
- Additional Feature:Auto-reset at 290°F
- Additional Feature:Quick-connect 1/4″ spade terminals
- Additional Feature:Direct Bradford White compatibility
Factors to Consider When Choosing Thermal Evaporator Switches
Whenever you’re picking a thermal evaporator switch, start from checking the temperature range and accuracy so the switch will match your system’s needs. Also consider mounting and size together with electrical rating compatibility to guarantee it fits and works safely, and believe about sensing type and response as well as durability and protection so the switch lasts under real conditions. I’ll walk you through each point with clear examples and friendly guidance so you can make a confident choice.
Temperature Range Accuracy
Accuracy matters a lot whenever you pick a thermal evaporator switch, and you want a choice that keeps your system steady and trouble free. You should pick a switch whose rated temperature range covers your evaporator’s normal span, for example 30–300 °C for very wide use, so it won’t fail as conditions shift. Check the set-point tolerance, such as ±3 °C, because tighter tolerances give cleaner control of evaporation and defrost cycles. Consider switch type: liquid-expansion sensors usually respond smoothly over wide ranges, while bimetal snap types switch fast and repeatably but with coarser accuracy. Also verify long-term stability and cycle life, and place bulb or capillary sensors where ambient heat won’t skew readings.
Mounting And Size
You’ve picked a switch with the right temperature specs, and now you’ll want to make certain it fits and performs inside the evaporator cabinet. Check the switch body dimensions and capillary or sensor rod length and diameter so it reaches the sensing spot without bending or stressing. Also inspect terminal type and spacing, like solder, crimp, or quick connect, to guarantee easy wiring and clearance in tight housings. Confirm the mounting method, whether flange, clip, or bracket, and match hole or screw size so you can secure it without warping the cabinet. Consider weight and footprint so airflow and nearby components stay clear. Finally, verify housing thickness and ingress protection to handle condensate, vibration, and cleaning.
Electrical Rating Compatibility
Because electrical mismatch can damage parts or cause unsafe trips, you’ll want to match the switch ratings exactly to your evaporator circuit before you install anything. Check the voltage and current ratings so the switch suits system supply voltages like 12–24 V AC or line levels such as 110–250 V. Also confirm contact type and configuration so the switch will open or close with your control logic. Verify maximum switching power exceeds load and startup inrush from compressors or fans to avoid welded contacts and premature failure. For DC use, treat DC ratings separately since DC causes more arcing and limits current. Finally, pick terminal types and spacing that fit your wiring and panel for secure low resistance connections under vibration.
Sensing Type And Response
Let’s walk through how sensing type and response shape your switch choice, because the sensor you pick controls how fast and how reliably your evaporator reacts. You’ll choose capillary sensors whenever you need continuous remote sensing across a surface. They cover wide temperatures and work well for spread-out heat, though they’re less accurate than electronic types. Bimetallic snap discs give quick, repeatable trips at defined points and survive many cycles, but expect a couple degrees of tolerance. Electronic sensors deliver the best accuracy, faster response, and programmable setpoints, yet they need power and interfaces. Also pick normally-open or normally-closed action to match fail-safe needs and control logic. Finally, keep in mind response time depends on sensor size and mounting. Small bulbs or direct surface mounts respond fastest.
Durability And Protection
You already picked a sensor for speed and accuracy, and now you want that sensor to keep working as conditions get tough. Choose switches with long cycle lives, like 100,000 to 200,000 plus cycles, provided the evaporator will switch often. Also check the IP rating, aiming for IP65 or higher to resist moisture, dust, and cleaning chemicals in HVAC and automotive settings. Prefer contacts plated with gold, silver, or copper alloys and sturdy connectors such as soldered, crimped, or sealed quick connects so conductivity stays reliable. Make sure the sensing element and any capillary handle the system’s top temperatures and have protection from kinks, abrasion, and vibration. Finally, pick housings with solid mounts and vibration and shock ratings for real-world durability.
